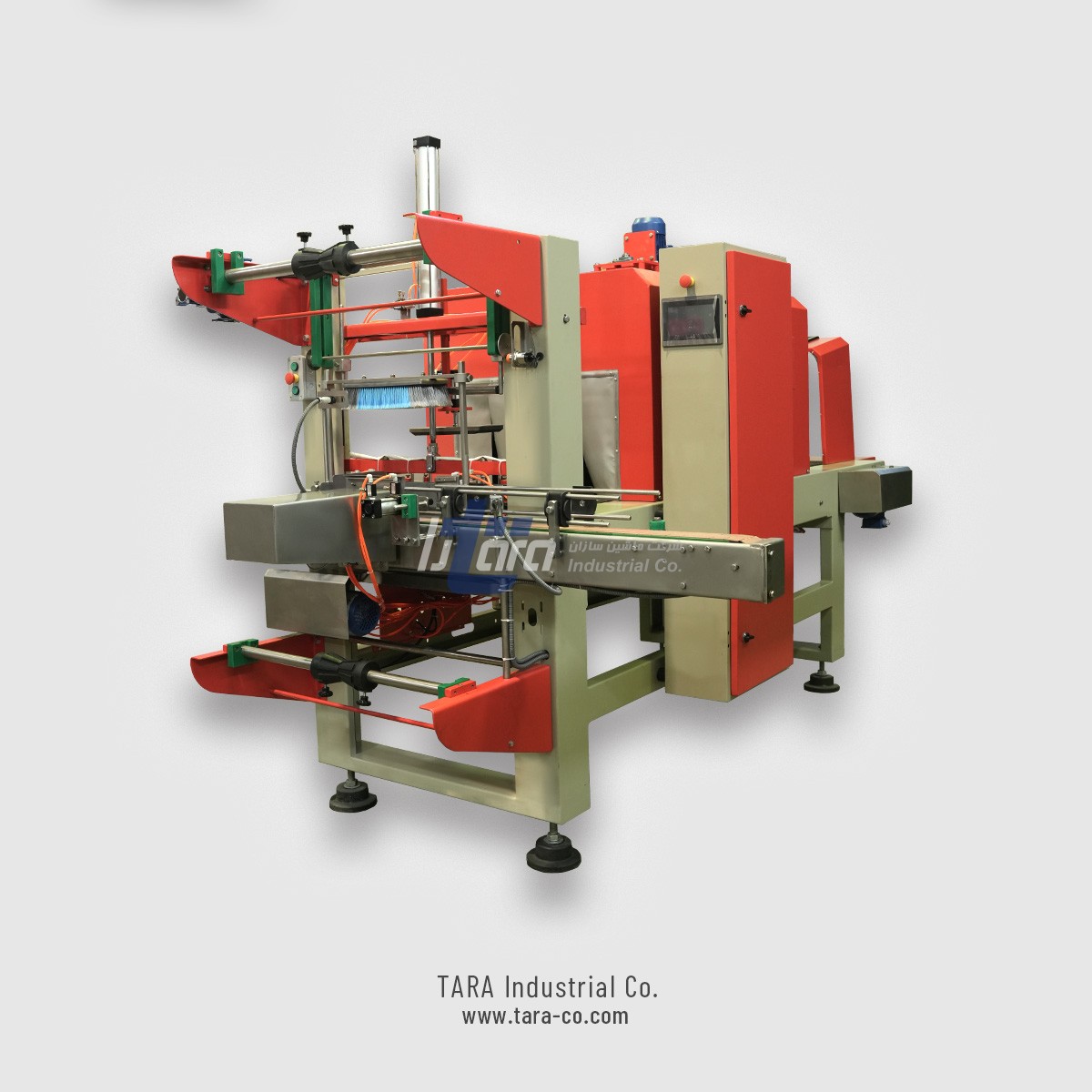

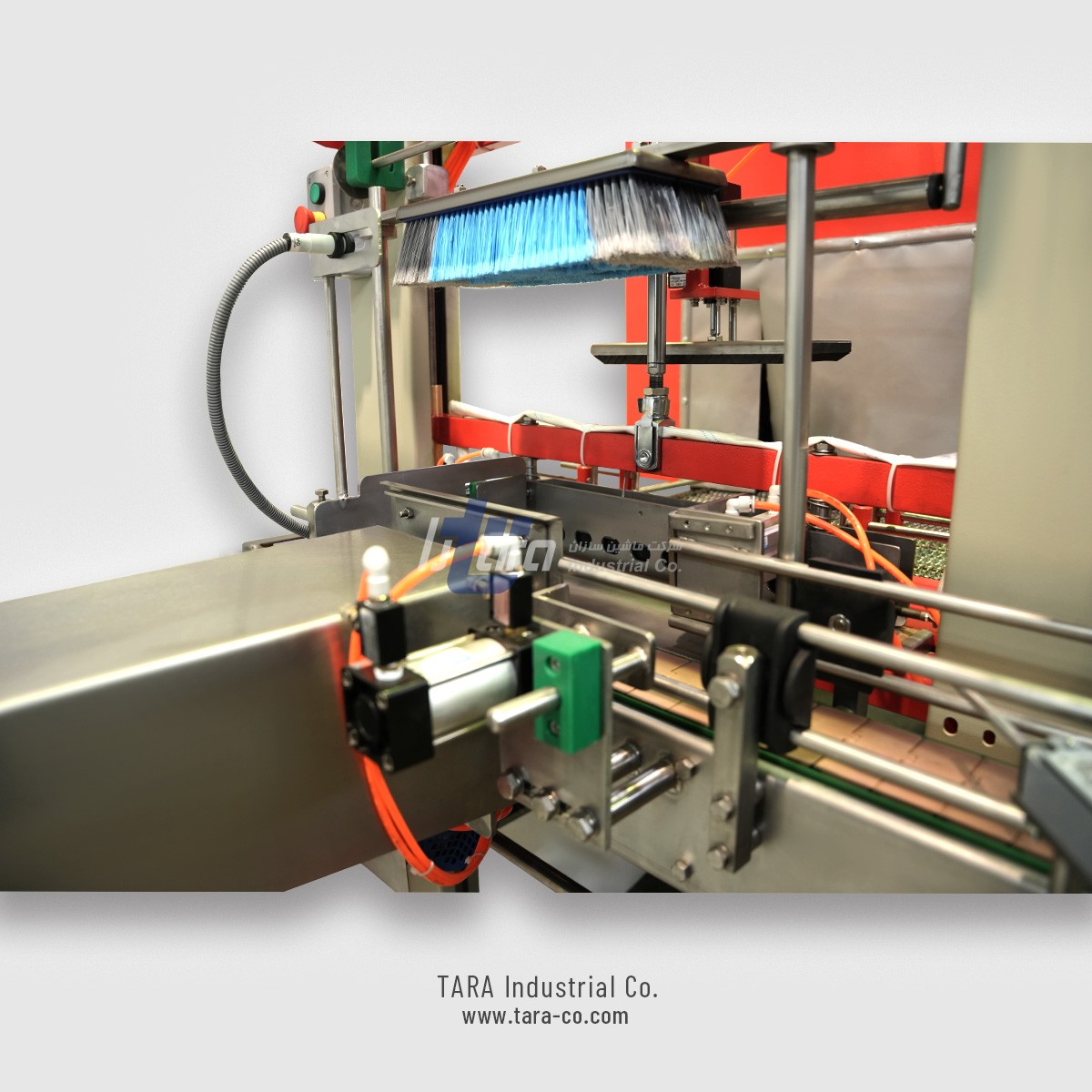

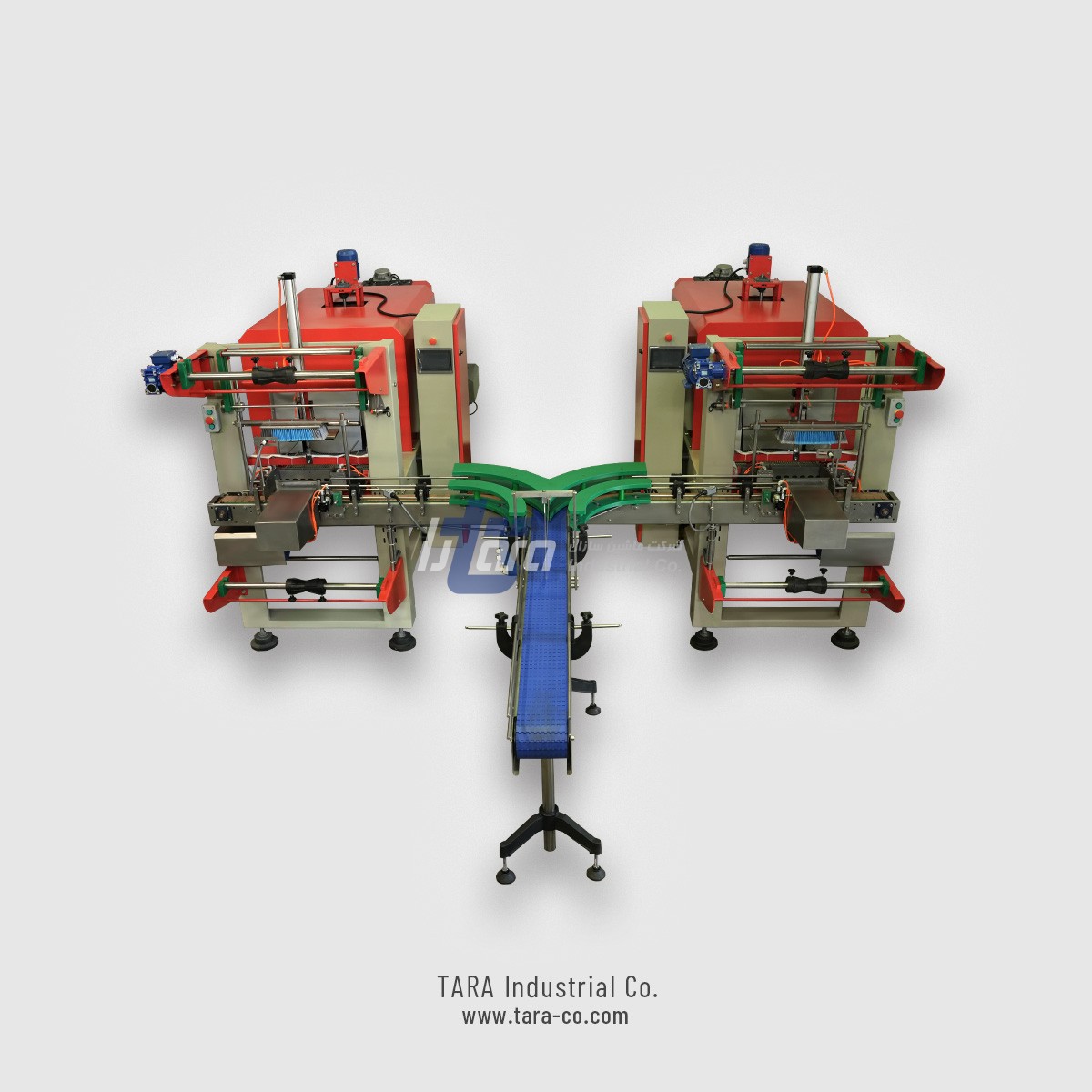

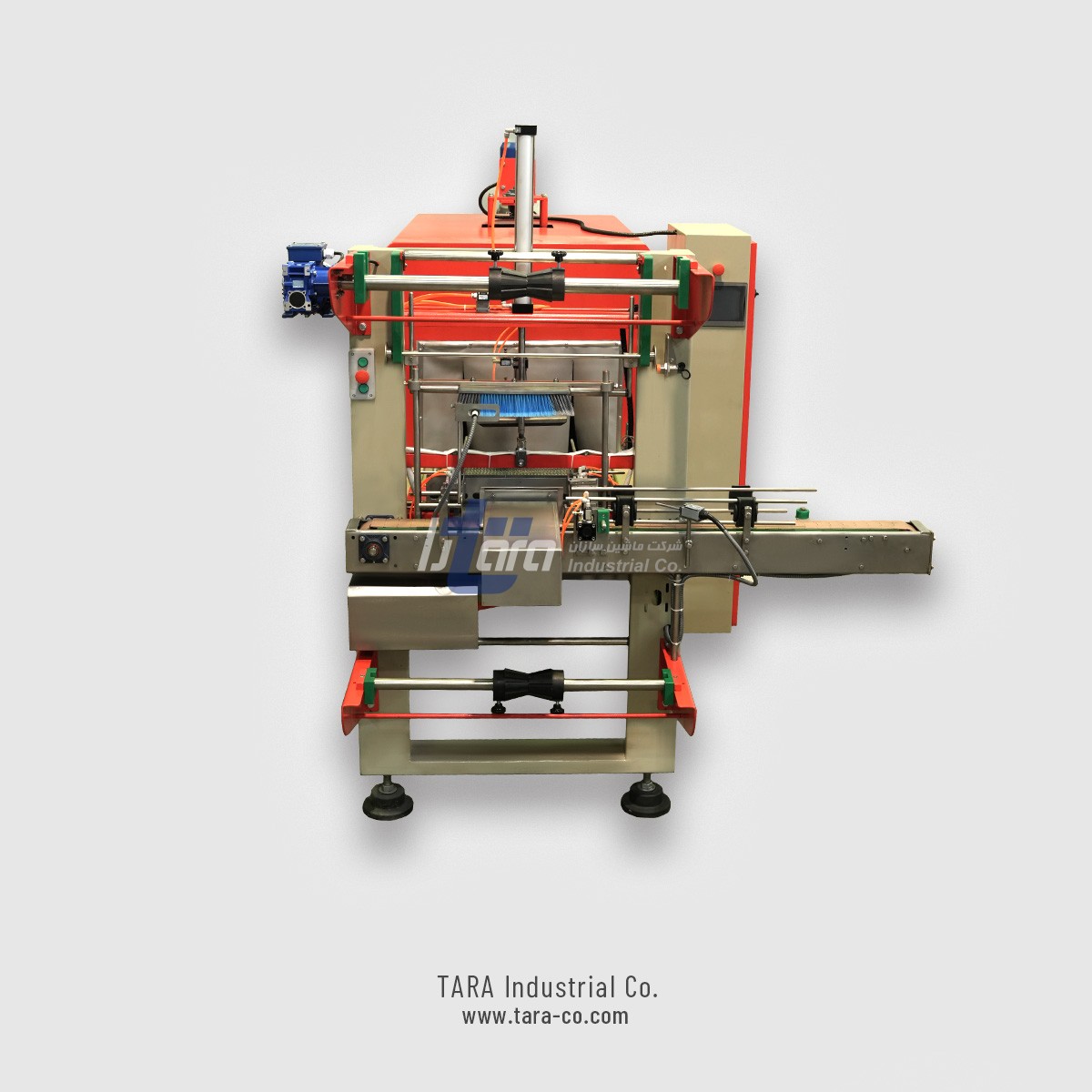

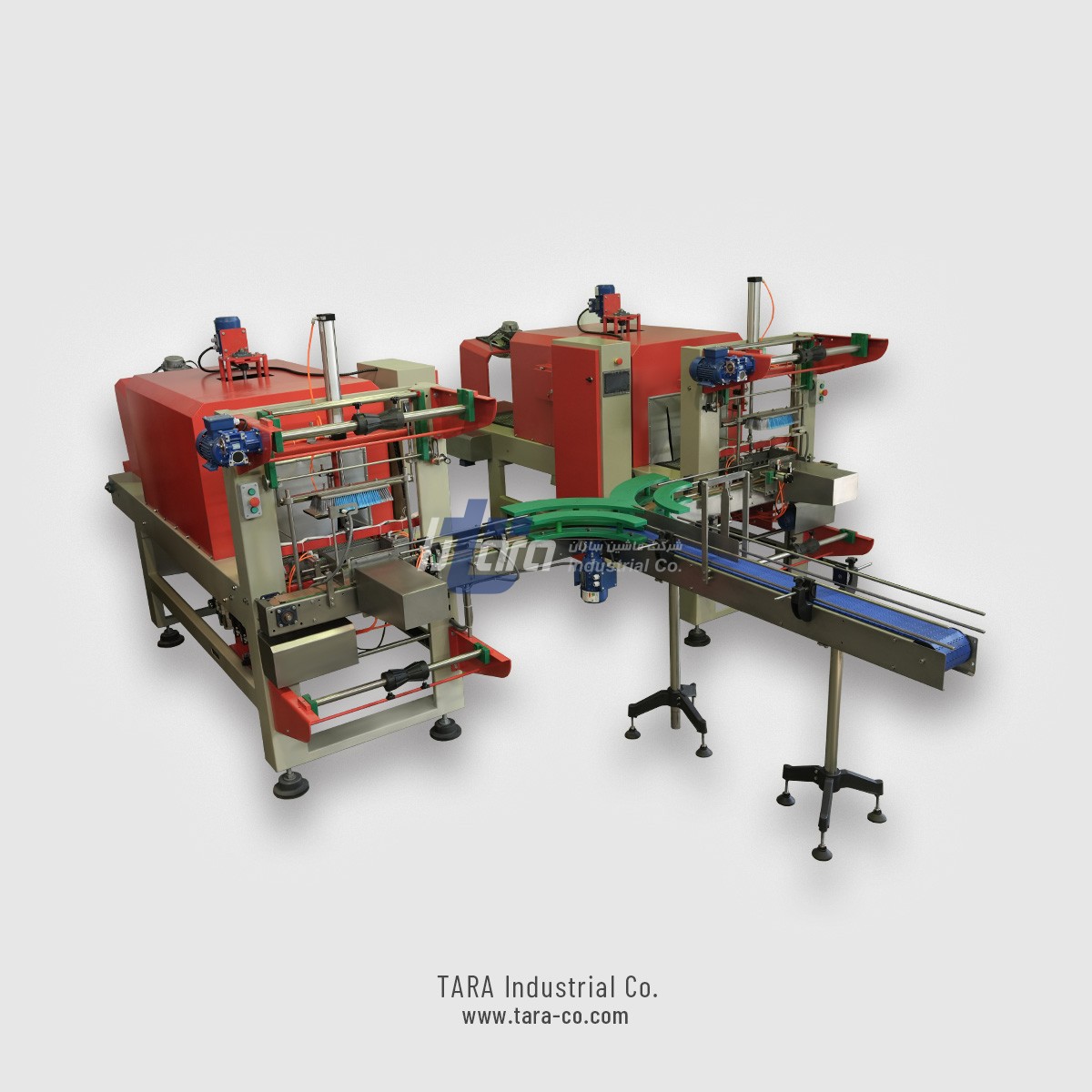

Fully automatic shrink packing Machine (High Speed)

Machine Description
  • -This machine can shrink bottles in rows of 4×3, 3×2,… without using half carton
  • it is directly connected to the line and do not need operator for rowing the bottles and shrink operation.
  • -The chassis is made up of 3mm iron and covered with furnace color resistance against corrosion.
  • -Width of entrance conveyer is 40cm and its parts are made up of AISI 316 stainless steel.
  • -The storage section of the film promotes the quality of packaging.
  • -The proper section of the bottle use of servo motor system
  • -Heater elements are installed as a separate board which helps the maintenance if necessary.
  • -The adopted electricity control is PLC and all of the machine’s information is reflected in touch panel.
  • -Machine have cutting and sewing blade which made up of titanium.
Machine info
Power Consumption
(kw)
10
Air
Consumption (Liter)
100
Tunnels
Temperature (c)
100-250
Packages
Dimension (mm)
350-400-500
Speed (b/h) 1,000
Dimension (mm)
(H)
1500
(W)
1300
(L)
5500
Showing the machine in action during production
